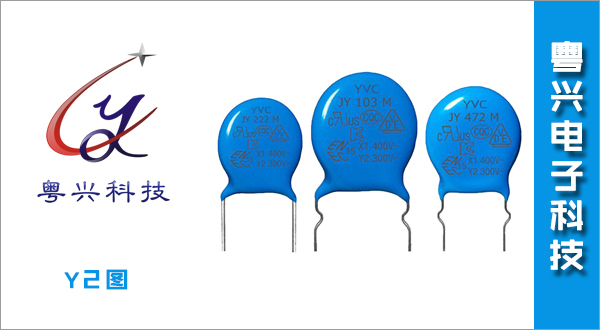

产品详情
特性:
具有高介电系数的陶瓷介质
阻燃的环氧树脂封装
通过了CQC、VDE、ENEC、IEC-CB、UL、CUL安全认证标
应用
适用于电子设备的电源电路噪音压制电路中
可以用作天线耦合跨接和旁路电路中
各类小家电控制板中
电源滤波器
高频交流负载
开关电源
电子镇流器
LED节能灯
使用与保管环境
（1） 电容器的绝缘层不具有良好的密封作用；因此，请勿将电容器存放在腐蚀性气体中，尤其是存在氯气，硫气，酸，碱，盐等的场所，同时应防潮。
（2） 电容器应存放在温度及相对湿度分别不超出-10至40度C及15至85%范围的场所。
（3） 请在交货后6个月内使用电容器。
RECOGNITION LIST | |||||||||||||
Part | Safety | CQC | KC | VDE | FIMKO | FIMKO | NEMKO | DEMKO | SEMKO | SEV | UL/CSA | ||
standard | CB | ||||||||||||
Numbe | Sub-Class | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | ——— | ||
Rated | X1:400 | Y2:300 | X1:400 | X1:400 | X1:400 | X1:400 | X1:400 | X1:400 | X1:400 | X1:400 | |||
Vol. | |||||||||||||
Y2:300 | Y2:300 | Y2:300 | Y2:300 | Y2:300 | Y2:300 | Y2:300 | Y2:300 | Y2:300 | |||||
(VAC) | |||||||||||||
JY10KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY12KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY15KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY18KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY20KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY22KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY25KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY27KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY30KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY33KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY36KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY39KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY47KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY50KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY56KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY62KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY68KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY75KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
JY82KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
Part | Safety | CQC | KC | VDE | FIMKO | FIMK | NEMKO | DEMKO | SEMKO | SEV | UL/CSA | |||
standard | O CB | |||||||||||||
Number | Sub-Class | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | X1,Y2 | ——— | |||
Rated | X1:400 | Y2:300 | X1:400 | X1:400 | X1:400 | X1:400 | X1:400 | X1:400 | X1:400 | X1:400 | ||||
Vol. | Y2:300 | Y2:300 | Y2:300 | Y2:300 | Y2:300 | Y2:300 | Y2:300 | Y2:300 | Y2:300 | |||||
JY101KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY151KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY221KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY271KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY331KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY471KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY561KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY681KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY102KY5P Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY102MY5V Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY152MY5V Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY222MY5V Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY332MY5V Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY392MY5V Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY472MY5V Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY682MY5V Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY822MY5V Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
JY103MY5V Y2 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
Y2 SERIES | 文件編號： | P004 | |
INTRODUCTION | 版本：3 | ||
制訂日期：2010/12/01 | |||
These Ceramic Disc Capacitors are specifically designed for AC applications and meet the safety requirements of various safety standards agencies.These capacitors are ideal for across
FEATURES:
☉Ideal for across the line applictions
☉Compact size
☉Cost effective product
☉Safety standards recognized for AC applications
GENERAL SPECIFICATIONS
Operating temperature | range: | －25℃ ｔｏ ＋85℃,－30℃ | ｔｏ ＋125℃ | |
Capacitance range: | 10 pF to 10000 pF | |||
Capacitance tolerance: | K＝±10% , M＝±20% | |||
Rated voltage: | 125 ,250 and 400 VAC. Please refer to table | |||
for | approval file number. | |||
Temperature coefficient:±10% for B (Y5P), ＋30 to －80% for F (Y5V) | ||||
Dissipation factor (tan Y5P:): 2.5% max. at 25℃ and 1KHz, 1± 0.2 Vrms. | ||||
δ | ||||
Y5V: 5.0% max. at 25℃ and 1KHz, 1± 0.2 Vrms. | ||||
Insulation resistance at 25℃10000M: | at 100VDC for 1 minute. | |||
Ω | ||||
Dielectric strength: | 1800 VAC for 60 seconds - AC125V,AC300V | |||
2600 VAC for 60 seconds - AC400V | ||||
CAPACITANCE AND DIMENSIONS:
When ordering safety standard recognized ceramic capacitors please use the part numbers as noted above
Rated Y2,X1:AC300V AND AC400V Dielectric strength: 1800Vac/2600Vac
PART NUMBER | T.C. | CAP. | TOL | DIMENSION(mm) | ||||
D max | F | T max | ||||||
JY10KY5P Y2 | 10PF | 6.5 | 7.5±0.8 | 5 | ||||
to | to | 6.5 | 7.5±0.8 | 5 | ||||
JY82KY5P Y2 | 82PF | 6.5 | 7.5±0.8 | 5 | ||||
JY101KY5P Y2 | ±10% | 100PF | K | 6.5 | 7.5±0.8 | 5 | ||
JY151KY5P Y2 | 150PF | 6.5 | 7.5±0.8 | 5 | ||||
JY221KY5P Y2 | (Y5P) | 220PF | ±10% | 6.5 | 7.5±0.8 | 5 | ||
JY331KY5P Y2 | 330PF | 6.5 | 7.5±0.8 | 5 | ||||
JY471KY5P Y2 | 470PF | 6.8 | 7.5±0.8 | 5 | ||||
JY561KY5P Y2 | 560PF | 7.5 | 7.5±0.8 | 5 | ||||
JY681KY5P Y2 | 680PF | 7.5 | 7.5±0.8 | 5 | ||||
JY102KY5P Y2 | 1000PF | 8.8 | 7.5±0.8 | 5 | ||||
JY102MY5V Y2 | 1000PF | 6.5 | 7.5±0.8 | 5 | ||||
JY152MY5V Y2 | 1500PF | 7.5 | 7.5±0.8 | 5 | ||||
JY222MY5V Y2 | ＋30 ~ －80% | 2200PF | M | 6.8or7.5 | 7.5±0.8 | 5 | ||
JY332MY5V Y2 | 3300PF | 8.5or9.5 | 7.5±0.8 | 5 | ||||
JY392MY5V Y2 | (Y5V) | 3900PF | ±20% | 9.5 | 7.5±0.8 | 5 | ||
JY472MY5V Y2 | 4700PF | 9.5 | 7.5±0.8 | 5 | ||||
JY682MY5V Y2 | 6800PF | 11.5 | 9.5±0.8 | 5 | ||||
JY822MY5V Y2 | 8200PF | 13.0 | 9.5±0.8 | 5 | ||||
JY103MY5V Y2 | 10000PF | 14.5 | 9.5±0.8 | 5 | ||||
Dimensions and Tolerance
B＝ 3.0 mm max for AA d＝0.55 mm ±0.05 mm
F＝ 7.5 or 9.5or10.0 ±0.8 mm L＝3 ~ 25 mm.
◎ According as customer's request and size.
