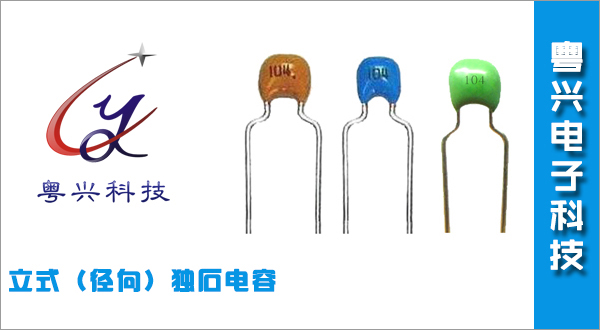

立式(径向)独石电容

您的当前位置: 首 页 >> 产品中心 >> 径向 0.5PF-100UF

立式(径向)独石电容

  • 所属分类:径向 0.5PF-100UF

  • 点击次数:
  • 发布日期:2016/05/23
  • 在线询价
详细介绍

欣福特

CUSTOMER:

          徑向引線獨石電容器

PRODUCT  NAME:

   CT4-XXXX-XXX-X-XXX-XX







SPECIFICATION

日期:              2016-2-15

DATE:



制造

MANUFACTURER

客户

CUSTOMER

确认

APPROVAL

确认

APPROVAL

擬制

DESTGNER

審核

CHECKER

批准

APPROVER

检验

CHECK

審核CHECKER

批准

APPROVER

黎炎容



郭晓红

王威




1.0測試儀器清單

LIST TEST FACILITIES

電橋

 IMPEDANCE BRIDGE



TH2617

中國同惠 CHINA

絕緣電阻測試儀

IR TESTER

TH2618

中國同惠

TONGHUICHINA



2.0引線獨石電容器的特點

  GENERAL SPECIFICATION OF LEADS MULTI-LAYER CERAMIC CAPACITOR



介質材料

DIELECTRIC

MATERIAL

NPON

X7RB

Y5UE

Y 5VY

介質種類

DIELECTRIC

TYPE

I類電介質

STABLE CLASS I DIELECTRIC

II類電介質

STABLE CLASS II

DIELECTRIC

電氣性能

ELECTRICAL

PROPERTIES

電氣性能最穩定,基本上不隨溫度、電壓和時間的改變而改變。

WITH NEGLIGIBLE

DEPENDENCE OF

ELECTRICAL

PROPERTIES ON TEMPERATUREVOLTAGEFREQUENCY AND   TIME

電氣性能較穩定,在溫度、電壓與時間改變時性能的變化不顯著,能造出比NPO介質容量更大的電容器。

WITH PREDICTABLE CHANGE OF PROPERTIES WITH TEMPERATUREVOLTAGEFREQUENCY AND   TIMETHIS DIELECTRIC IS FERRO—ELECTRIC AND OFFERS HIGHER CAPACITANCE RANGES   THAN CLASS I

具有較高的介電常數,常用於生産比較大、標稱容量較高的大容量電容器産品,但其容量穩定性能較X7R差,容量損耗對溫度、電壓等條件較敏感。

WITH HIGH TWST

DIELECRIC CONSSTANT

AND GREATER VARIATION

OF PROPERTIES WITH

TEMPERATURE AND TEST

CONDITIONSVERY HIGH

CAPACITANCE PER UNIT

VOLUME

應用

APPLICATION

適用於對穩定性要求高的電路,如溫度補償電路、高頻震蕩電路等。

USE IN CIRCUITS

REQUIRING STABLE

PERFORMANCE

適用於隔直、耦合、旁路與對容量穩定性要求不太高的鑒頻電路。

USE AS BLOCKING

COUPLINGBY--PASSING

DISCRIMINATING

ELEMENT

適用於要求容量較大的電路,如儲能、記憶電路等。

SUITED FOR BY—PASSING

AND COUPLING APPLICATION

SUCH AS STORE

POWER AND MEMORY

CIRCUIT

容量範圍

CAPACITANCE RANGE

1pF—10nF

100pF—1μF

1nF—14.7μF

溫度係數

OPERATING

TEMPERATURE



0±30ppm/

-55~+125





±15%

-55~+125

+30%-56%

-30~+85

+30%-80%

-30~+85

3.0産品命名表示方法

3.0.1徑向引線電容

RADIAL LEADS MLCC



      CT4  0805  B  104 K  500 PF3

       ¯       ¯   ¯   ¯   ¯   ¯   ¯

       a        b   c   d   e   f   g

4.0電氣性能標準

THE STANDARD OF ELECTRONIC PROPERTIES

 4.0.1  檢驗標準及條件

      Test Standard and Condition



檢驗專案

ITEM

檢驗標準

TEST STANDARD

NPON

X7RB

Y5VY

電容量

Capacitance

在相應的誤差範圍內

WITHIN THE TOLERANCE

在相應的誤差範圍內

WITHIN THE TOLERANCE

在相應的誤差範圍內

WITHIN THE TOLERANCE




損耗角正切

Dissipation Factor



          0.15%



      3.5%



  7.0%(220nF以下)

  10.0%220~470nF

  12.5%470~1000nF



絕緣電阻

Insulation Resistance

C10NF    IR>10000MΩ

     C>10NF   R .C>100MΩ.μF

C25NF     IR>4000MΩ

                   C>25 NF    R.C>100MΩ.μF



耐電壓

Voltage Test

2.5倍標稱電壓,電流不超過50 mA5

Test voltage:2.5.rated voltage

The charging current may not exceed 50   mA. Duration of test:5 seconds

測試條件

TEST CONDITION

容量測試頻率

FREQUENCY

1M HZ

(C>1000PF,1KHZ)

1KHZ

容量測試電壓

TEST VOLTAGE

                 1±0.2VDC

C<1μF,V:0.3 ±0.2VDC

C≥1μF,V:1.0 ±0.2VDC

絕緣電阻測試電壓

TEST VOLTAGE OF IR

標稱電壓,充電電流不超過50 毫安培



The measuring voltage is equal to the   rated voltage.

The charging current may not exceed 50   mA

標準大氣條件

Standard atmospheres conditions

Unless otherwise specified, the standard range of atmospheric   conditions for measuring and testing is as follows:

Ambient temperature      15~35

Relative humidity         45%~75%

Air pressure             86Kpa~106Kpa (860-1060mbar)

If there may be any doubt on the results, measurements shall be made   within the following limits:

Ambient temperature      25±1

Relative humidity         48%~52%

Air pressure             86Kpa~106Kpa (860-1060mbar)

操作溫度範圍

Operating temperature range

The operating temperature range is the range of ambient temperatures   at which the capacitor can be operated continuously at rated voltage.

Temperature compensation use:

NPO                       -55~+125

X7R                       -55~+125

Y5V                       -25~+85

Z5U                       +10~+85

5.0可靠性試驗專案及要求:

ITEM AND REQUIREMENT OF RELIABILITY TEST

專案

Item

性能要求

Properties Request

試驗條件及要求

Test Condition and Request


外觀

Appearance

無異常,標誌清晰。

No abnormality,  sign in focus

目測

Eyeballing


電容量

Capacitance

在規定的允許偏差範圍內

In permissible tolerance

測試條件:

Test condition

Class I

測試電壓:1±0.2V

Voltage

測試周波數:1MHz±10%  C1000pF

Frequency    1KHz±10%  C>1000pF

Class II

測試電壓:1±0.2V

Voltage

測試周波數:1KHz±10%

Frequency    1KHz±10%


絕緣電阻

Insulation Resistance



在允許的範圍內

In permissible tolerance

測試電壓:額定電壓

Voltage:   rated voltage

持續時間:60±5s

Duration;

充、放電流限制在50mA

Charge / discharge current is less than   50 mA.




耐電壓

Withstanding Voltage





端子間Between terminals







測試後無可見損傷或擊穿

There shall be no evidence of damage or flash over during the test.







施加電壓:2.5倍額定電壓

Voltage: 2.5 times rated voltage

時間:2s

T=2s

充、放電流限制在不大於50毫安

Charge / discharge current is less than 50 mA.




端子與引線間

Between terminals and body










耐焊接熱

Withstanding solder heat

外觀無可見損傷,標誌清晰

There shall be no visible defacing and   sign in focus



錫溫:260±5℃,

Tin review:

持續時間10s

Duration

恢復時間:24±2 h

Recovery time;





溫度特性T.C.

Temp. Char.

ΔC/C



CG/CH/RH

±0.5% OR ±0.5pF


UJ/SL

±1% OR ±1pF


B

±10 %


F

±30 %




可焊性

solder ability

引線上錫良好

Leads shall excellently be covered with   a new coating

錫溫:230±5℃,

Tin review:

持續時間2s

Duration










耐久性

Life test



外觀無可見損傷,標誌清晰

There shall be no visible defacing and   sign in focus





電壓:1.5 UR

Voltage:   1.5 UR

溫度:上限類別溫度

Temperature:   upper category   temperature

浪湧電流應限制在50毫安內

Charge/discharge current is less than 50mA

持續時間:(duration)         1000----(+48h~-0 h)

恢復時間:(recovery time)    24±2 h



溫度特性T.C.

Temp. Char.

容量變化

ΔC/C

損耗角正切

DF

絕緣電阻

IR (MIN)



CG/UJ

±3% or ±1pF



1.5tgδ0

Ri4000MΩ OR

Ri.CR40s


CH/RH/SL

±5% or ±1pF




B



±20 %



5%



Ri2000MΩ OR

Ri.CR50s




F



±30 %

10%100000pF

12.5%

(220000~470000pF)

17.5% (1000000pF)




















6.0  徑向引線電容器尺寸

      SIZE CODE OF RADIAL LEADS MLCC

Lead spacing e=5.0±0.5mm


7.0  包裝及儲存

PACKAGE AND STORAGE

7.1  徑向引線陶瓷電容器包裝形式

  RADIAL LEADS MLCC PACKAGING STYLE

散料包裝:(BULK)

普通腳長(LEADS IN NORMAL LENGTH) —1000pcs/

長腳(LONG LEADS , 25mm--500pcs/

     编带包装:(TAPE & REEL

Code

P

P0

P1

P2

d

Δh

W

W0

W1

W2

H

H0

I

D

Dim

12.7

12.7

3.85/5.1

6.35

0.5

0

18

8

9

3.0

32.25

15-20

1.0

4.0

Tol

±1

±0.8

±0.7

±1.3

±0.1

±2

±0.8

±1

±0.5

Max

Max

±0.5

Max.

Max.

Note: P1=3.85mm for F=5.0mm; P1=5.1mm for F=2.5mm

7.2 標簽及標識

LABEL AND SYMBOL

包裝袋有標簽,標簽包括以下內容:

Label is onin the package, It includes



型號規格   標稱容量    數量         誤差級別     批號

PART NO   CAPACITANCE  QUANTITY     TOLERANCE    LOT NO



額定工作電壓     包裝日期         溫度係數                   QC蓋章

RATED VOLTAGE    PACKAGE DATE     TEMPERATURE COEFFICIENT    QC MARK





7.3儲存方式

STORAGE METHODS



存儲條件:溫度5--35   相對濕度:45%--75%   存儲期:1

Storage condition: Temperature: 5--35

                        Relative humidity: 45%--75%

                        Storage period: one year
